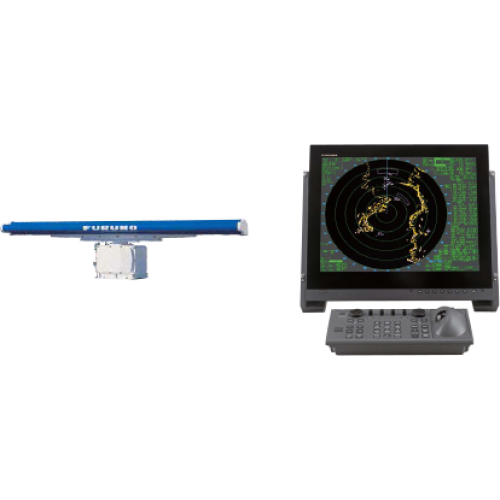

The revolutionary FAR-28x7S series of S-band radars are the result of FURUNO's 50 years experience in marine electronics and advanced computer technology. This series of equipment is designed to meet the exacting standards of the International Maritime Organization (IMO) for ships of 10,000 GT and above.
The display unit employs a 23.1" LCD. It provides an effective picture diameter of larger than 340 mm. The SXGA monitor provides crisp radar echoes, which are presented in a selected color with a day or night background color for easy observation in all lighting conditions. Different colors are assigned for marks, symbols and texts for user-friendly operations.
Target detection is enhanced by sophisticated signal processing techniques such as multi-level quantization (MLQ), echo stretch, echo average, and radar interference rejecter. Two guard zones can be set at required ranges in any sector. Other ship's movements are assessed by advanced target tracking software and alerted by CPA/TCPA data readouts. The FAR-28x7S series provide ARPA and AIS (transponder unit is required) function as a standard.
A variety of radar antenna is selectable, from 10' or 12'. The S-band radar assures target detection in adverse weather where X-band radar are heavily affected by sea or rain clutter.
Standard Features:
- Improved detection capability by new MIC and I/F amplifier
- High resolution LCD display providing crisp echo images
- Two independent X- and S-band radars can be interswitched to meet SOLAS requirements on ships 3,000 - 10,000 GT
- Easy operation by customizable function keys, trackball/wheel palm module, and rotary controls
- Low spurious magnetrons meeting ITU-R unwanted emission standards
- Standard ARPA functions displaying 100 ARPA targets acquisition
- Display up to 1000 AIS symbols
- Complies with the following IMO and IEC regulation:
- IEC 60936-1 shipborne radar
- IEC 60936-2 HSC radar
- IEC 60872-1 ARPA
- IEC 60872-2 ATA
- IEC 60832-3 EPA
- IEC 60945 General requirements
- IMO MSC.64(67) Annex 4
- IMO A.823(19)
- Optional track ball system for user friendly operation from a remote station
- ARPA function is provided as a standard
- Interswitch capability without dedicated hardware for dual or multiple radar/ARPA installation - up to four radar systems can be connected in the network
Power Requirements:
- Processor Unit: Shipped at 115/230 VAC, 1ø, 50/60 Hz
- 440 VAC, 1ø, 50/60 Hz with optional transformer RU-1803
- Display Unit: Shipped at 115/230 VAC, 1ø, 50/60 Hz
- 440 VAC, 1ø, 50/60 Hz with optional transformer RU-1803
- Antenna Unit: Shipped at 230 VAC, 3ø, 60 Hz; 380 VAC, 3ø, 50 Hz; 440 VAC, 3ø, 60 Hz
- 115 VAC, 3ø, 60 Hz with optional transformer RU-5693
- 230 VAC, 3ø, 50 Hz with optional transformer RU-6522
- 440 VAC, 3ø, 50 Hz with optional transformer RU-5466-1
